kit gnv car accessories auto cng kit parts 5th generation conversion CNG kits

₦205.00 NGN

Promotion Épuisé

Title Variant

Quantité

If you have any questions, please contact us whatsapp+8618874778827

Products Description

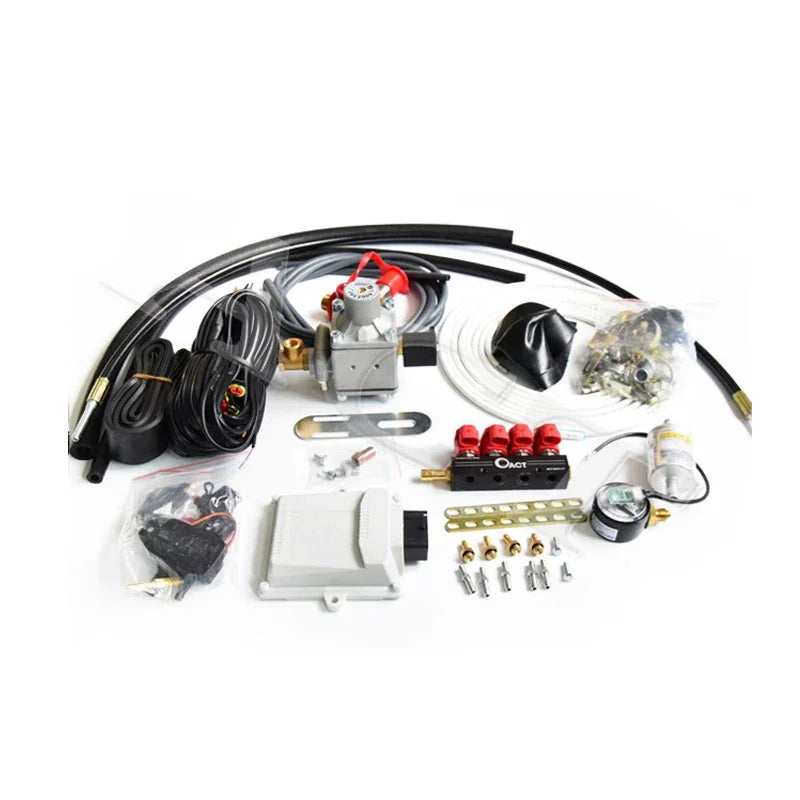

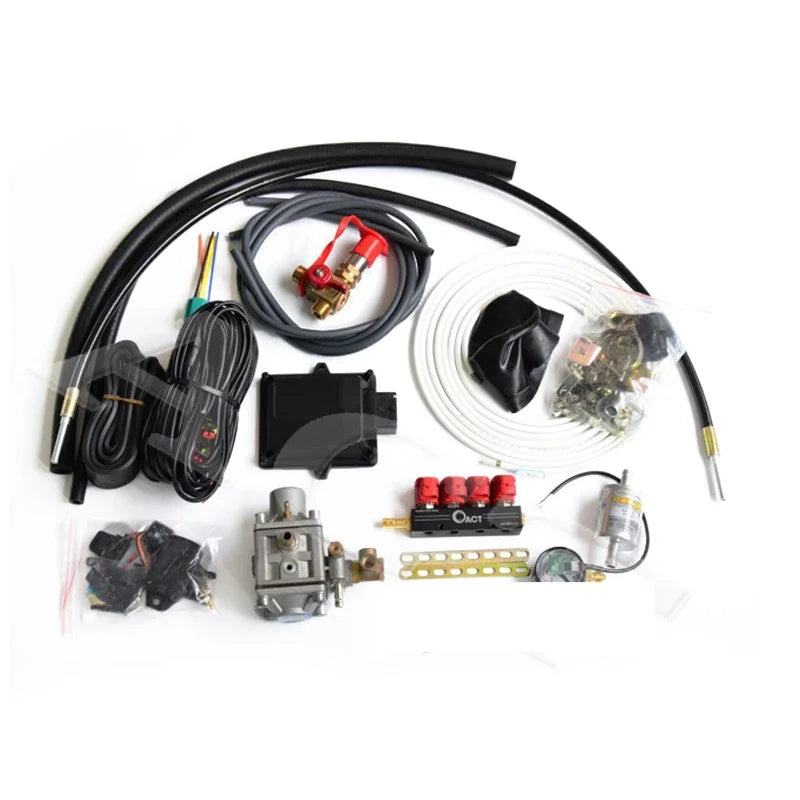

kit gnv car accessories auto cng kit parts 5th generation conversion CNG kits

Natural Gas for Vehicles (NGV) is a fuel for internal combustion engines that is basically composed of Methane gas and its use offers extraordinary advantages.

NGV, unlike gasoline, does not contain lead because of its high octane rating (120-130). As combustion is more complete, the contaminating effects of the exhaust gas emissions are reduced by approximately 80%. These gases are also less corrosive, thus increasing the duration of the exhaust system. NGV keeps the spark plugs clean, prolonging their use; it does not contaminate the oil, doubling the time required for oil changes and that of the filters; it improves lubrication because the cylinders are not washed by gasoline excess, thus avoiding premature wear in the motor.

In today's world there are constant advances in all aspects that concern security in case of automobile accidents; in gasoline vehicles the fuel is transported in thin sheet metal tanks that are very fragile when impacted and can explode. CNG is stored in steel cylinders with 6 to 8 mm thick walls; this literally makes it the most resistant component of the vehicle. The steel fuel pipes are also more resistant than the gasoline ones; even if there were to be an accidental breakage or leak, instead of the dangerous gasoline spill on the ground underneath the vehicle, the very light NGV will rise rapidly and dissipate into the air.

Component :

The installation of the gas equipment comprises the following parts:

Product Name	Recommended Products
1. CNG Injector rail	VK37 / VK39 / JY08 Injector rail
2. ECU kits	MP36 / MP48 / N18 / 6504 ECU kits
3. CNG reducer-140kw	JY- 02 / ACT-04 / ACT-B reducer
4. High pressure tube	6m*6mm carbon steel/copper/stainless steel high pressure tube
5. Manometer	CB08/201C Maometer
6. ECU Switch	MP36 / MP48 ecu switch
7. Filling Vavle	QF-T1H6/CTF-10/T2H/T2H-1/QF-T1H9/QF-T3H/ TES filling vavle
8. Cylinder tank	30-40-60-90-120 L CNG cylinder tank
9. Filter	12*12mm F-01 / F-02 / F-03 filter
10.Relay	Relay (5V or 12V)
10. Rubber cap and belt	common rubber cap and 2. 5M belt
11. CNG Casing	Water pipe 7.5141500 mm Vacuum tube 491500 mm Jet tube 5111200 mm Low pressure gas pipe 1016800 mm Bellows 34.5*650 mm
12. Accessories bags	CNG sequential injection accessories bags

Notice :

There are a few checks that need to be performed before the vehicle enters the installation workshop for conversion, to determine whether it is suitable for installation of the NGV equipment.

The structure of the vehicle must be inspected, to check if it is in a good state that allows adequate fitting of the supports of the various elements such as the NGV tank (s), the pressure regulator, the high-pressure pipe clamps, etc.

To make sure that the motor functions properly, check the following:

The ignition system: spark plugs, spark plug cables, contact points, condenser, ignition coil, ignition plate and distributor. The faulty state of any of these parts will cause a poor ignition spark, thus hindering the good functioning of the equipment.

The battery must provide 12 volts of power to the pressure regulator so that its electrovalve will open properly when the vehicle is operating on gas. The engine's carburetion system must also work properly because even though a NGV system is being installed, the vehicle must be capable to operate in bi-fuel mode (gasoline/gas).

If the vehicle is not in good condition, the installation of the NGV system will not result in a satisfactory operation vehicle.

Packaging

A:Common Packing: Plastic bag + Label + Inner Box+Export Carton

B:Customized Packing: OEM Label, Inner Box,etc.

C:Package will be processed after all the tests finished.

Transportation

(1)By sea,by air,or by express (TNT,Fedex,UPS,DHL,EMS etc);

(2)We can provide freight services or deliver the goods to your designated forwarder.

(3)We support most inlan dport, such as Shanghai ,Guangdong .

FAQ

Why choose us?.................................................................

1)Top Quality. Every product is made through strictly production process and quality testing, which has pass the test of BV,ISO, CE and GOST, and been accepted by clients spreading over 43 countries even including Italy and Poland.

2)2-year Warranty. All products enjoying 2 years free of equipment maintainence warranty.

3)Free Sample. If you order a set of products for testing, we will return the freight to you from your next normal order;if you order a component for testing, we will return the sample charge to you.

4)Cost Saving. We provide long-life, shock-resistant autogas equipment with excellent quality and better performance, resulting in cost saving.

5)Quick Delivery. We promise to ship your goods with 3 days after confirming your order, or we would like to return your payment if you asked.

Can your factory supply OEM serive?.........................................

Yes, we can. Send us the sample or the detailed speicifications of the products you want to clone →calculate the cost of opening model →start to produce the sample for testing →continue to produce according to your feedback.

What's your MOQ, payment terms?............................................

Our MOQ :1 piece for sample order,5 pieces for normal order.

Our payment terms: T/T, D/P, L/C, Paypal, Westernunion.
